Choose a print area with confidence. These diagrams show the maximum areas configured in our Design Studio. Your garment style, size, seams and decoration method determine what fits.

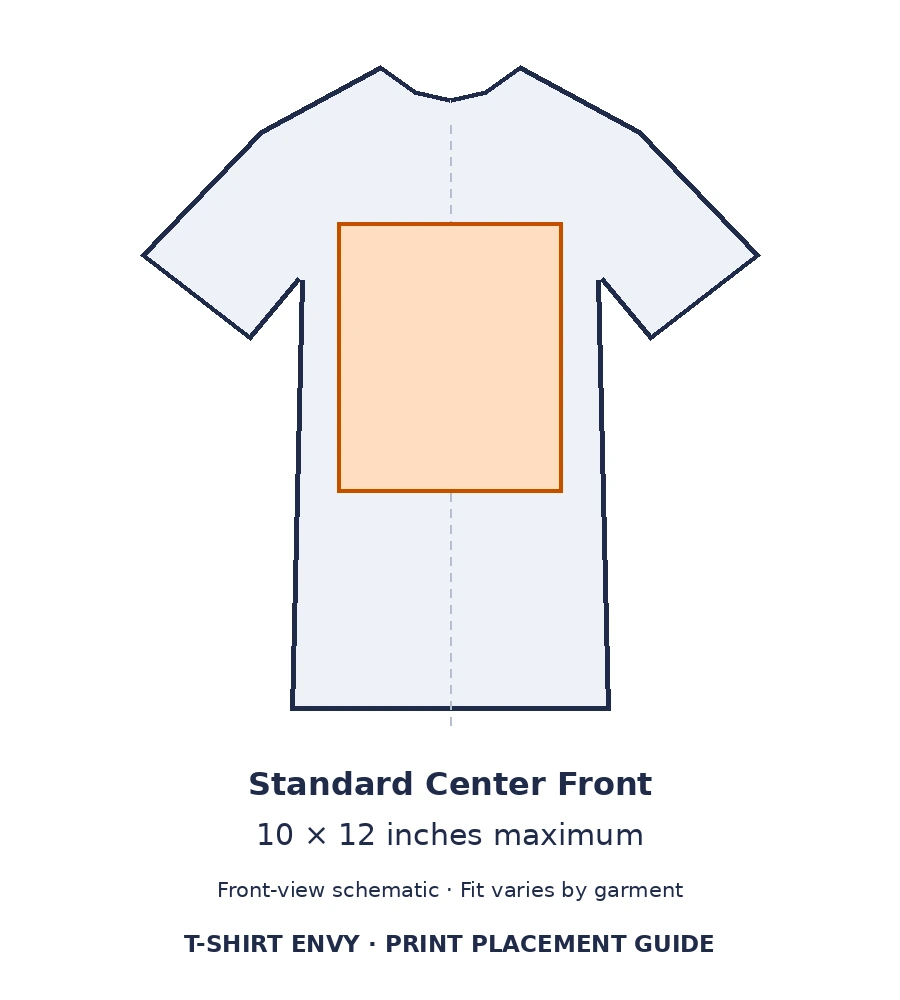

Standard Center Front / Full Front — configured maximum 10 × 12 inches.
Up to 10 × 12 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
Default · Included. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

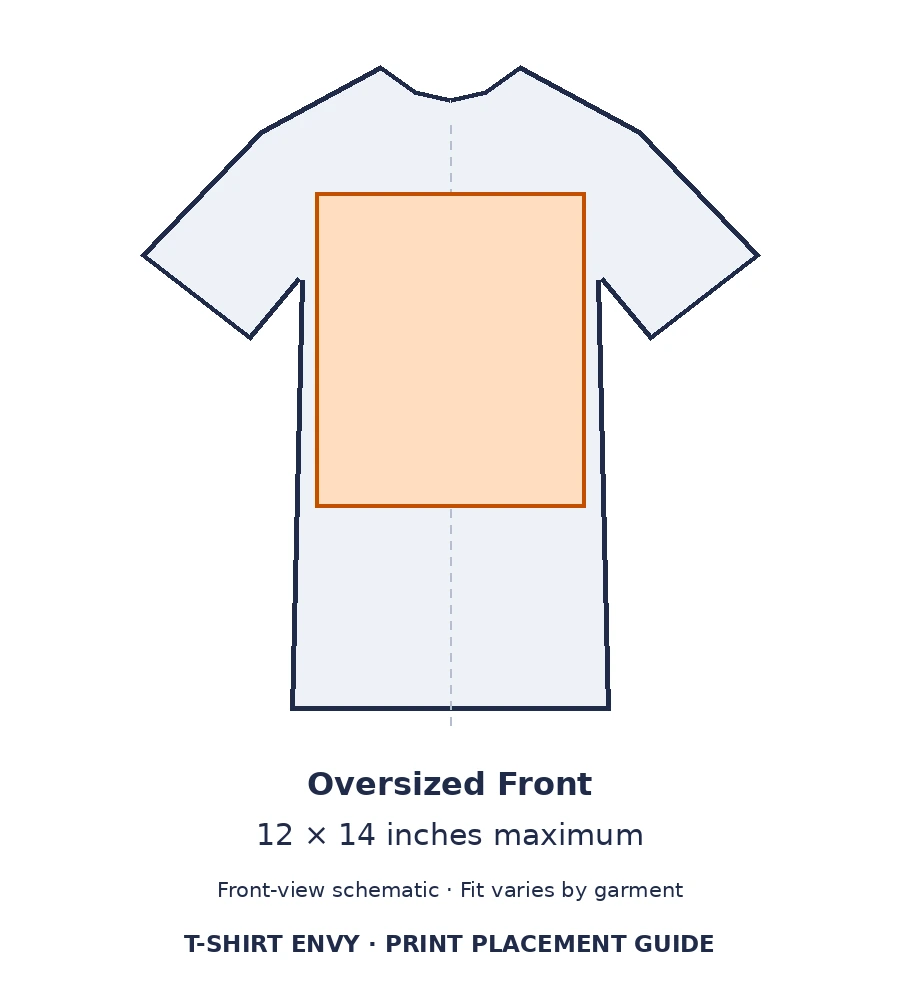

Oversized Front — configured maximum 12 × 14 inches.
Up to 12 × 14 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
+$5.00 per item. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

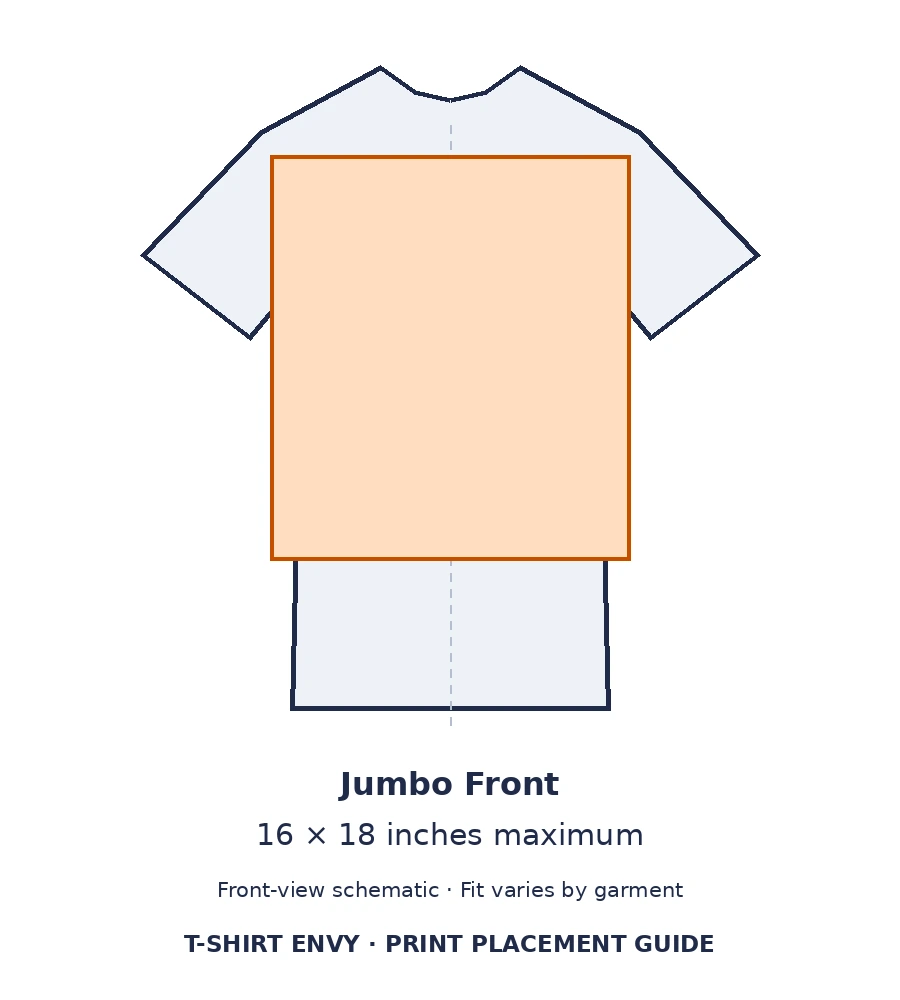

Jumbo Front — configured maximum 16 × 18 inches.
Up to 16 × 18 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
+$12.00 per item. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

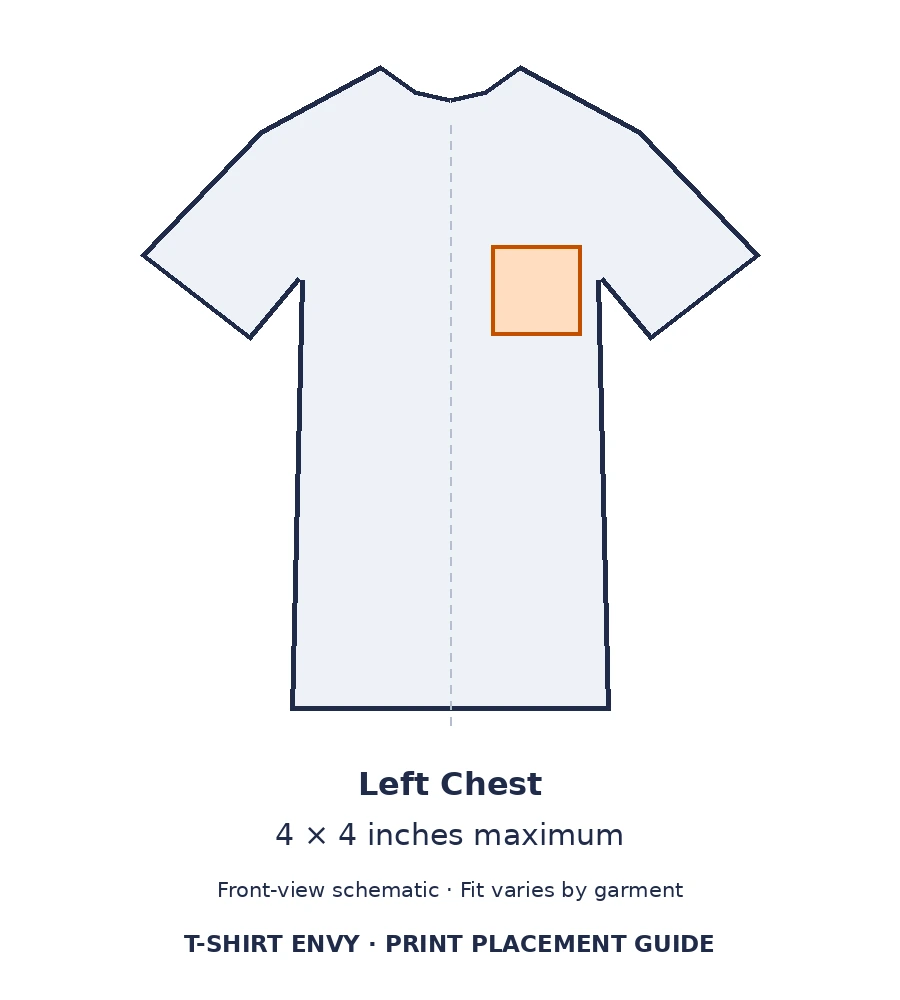

Left Chest — configured maximum 4 × 4 inches.
Up to 4 × 4 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
Left and right refer to the wearer. Align with the Studio preview; no universal collar-to-logo distance is specified.
Included. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

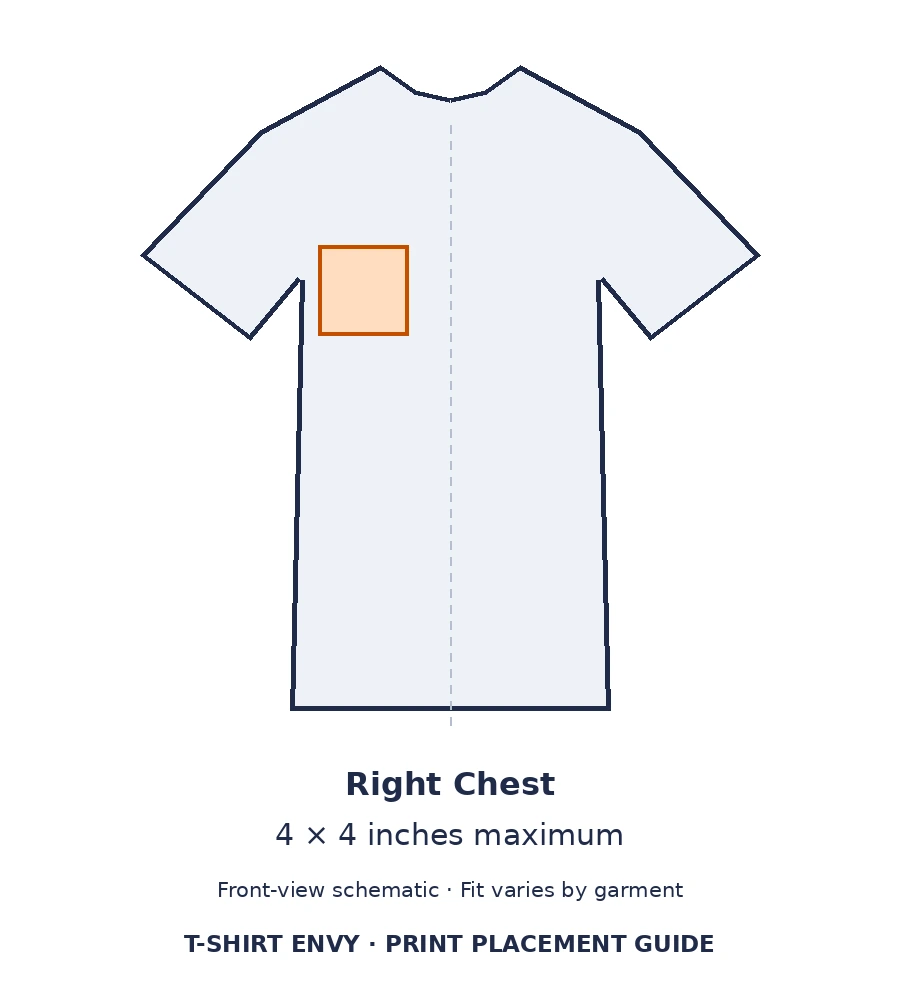

Right Chest — configured maximum 4 × 4 inches.
Up to 4 × 4 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
Left and right refer to the wearer. Align with the Studio preview; no universal collar-to-logo distance is specified.
Included. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

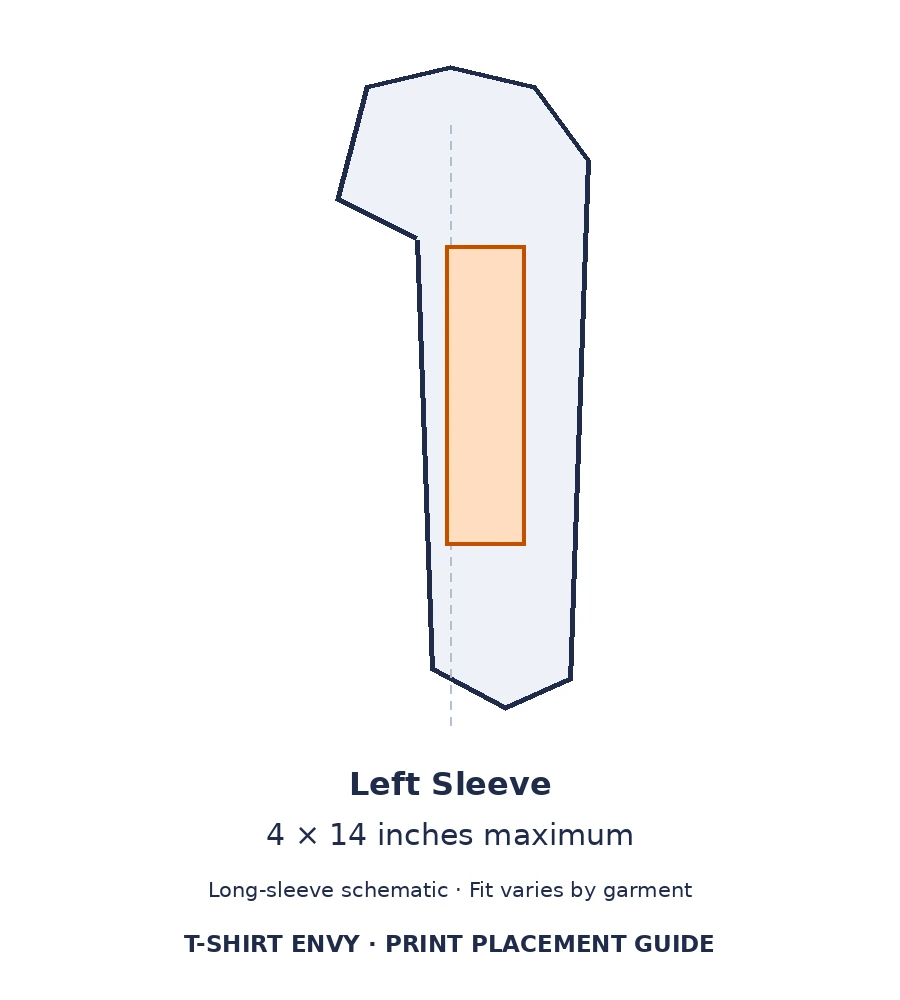

Left Sleeve — configured maximum 4 × 14 inches.
Up to 4 × 14 in
Sleeved T-shirts and eligible long-sleeve apparel. A 14-inch height needs a suitable long sleeve; short sleeves may need a smaller print.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
Standard sleeve area. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

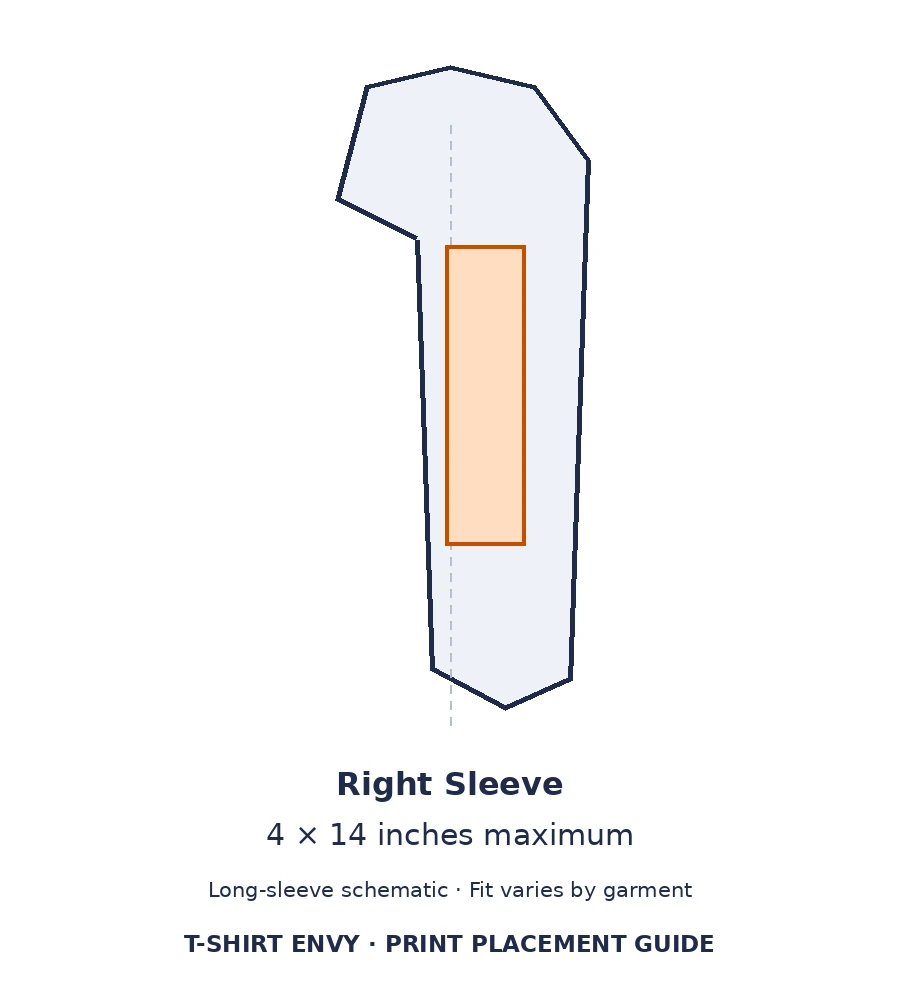

Right Sleeve — configured maximum 4 × 14 inches.
Up to 4 × 14 in
Sleeved T-shirts and eligible long-sleeve apparel. A 14-inch height needs a suitable long sleeve; short sleeves may need a smaller print.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
Standard sleeve area. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

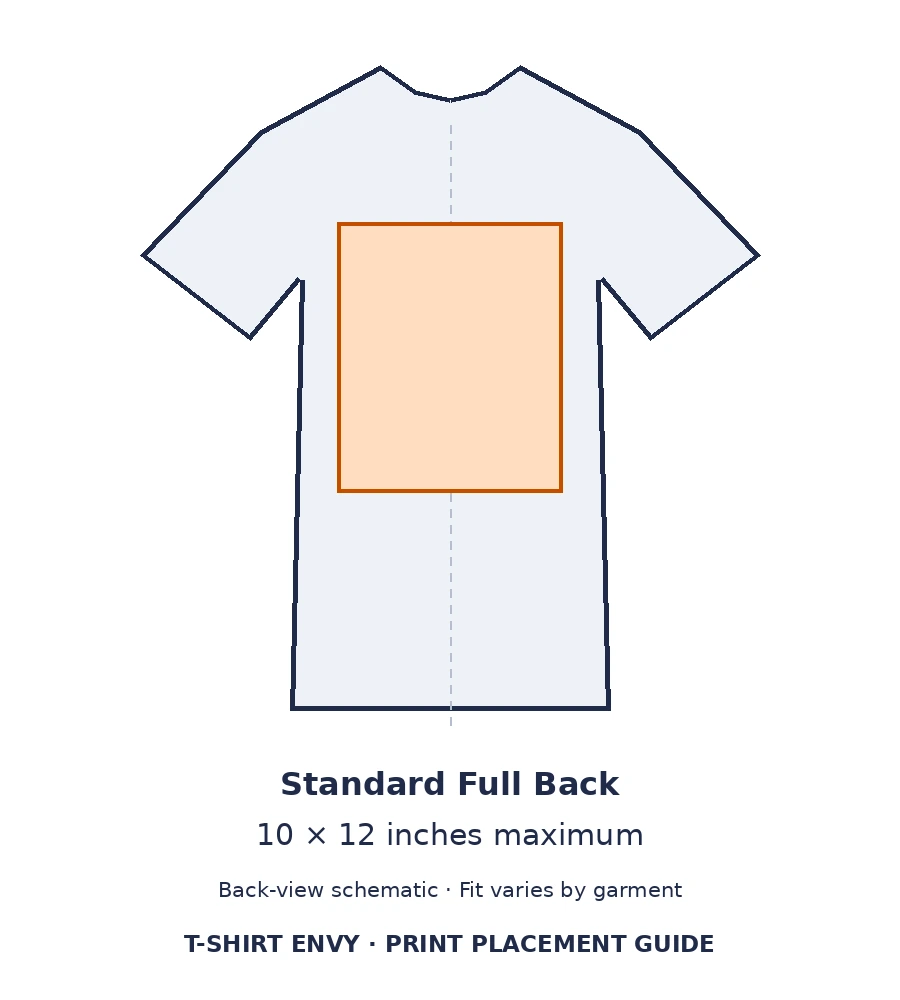

Standard Full Back — configured maximum 10 × 12 inches.
Up to 10 × 12 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
Default · Included. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

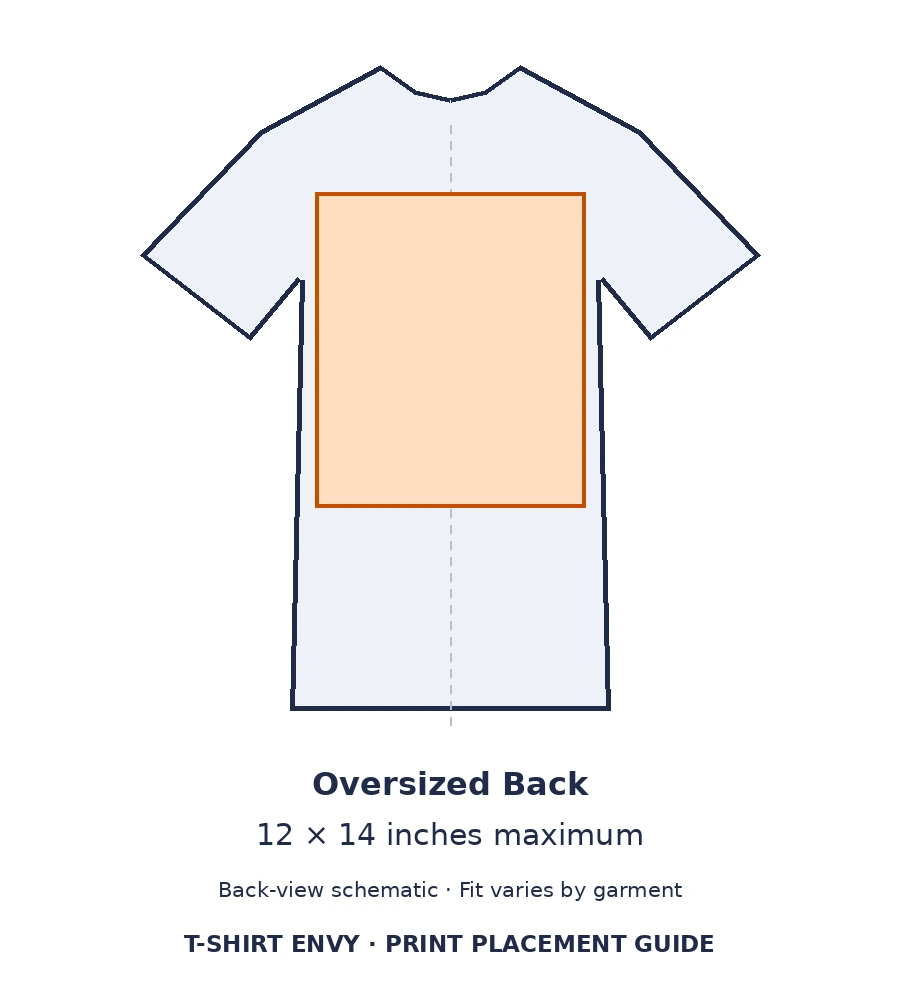

Oversized Back — configured maximum 12 × 14 inches.
Up to 12 × 14 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
+$5.00 per item. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

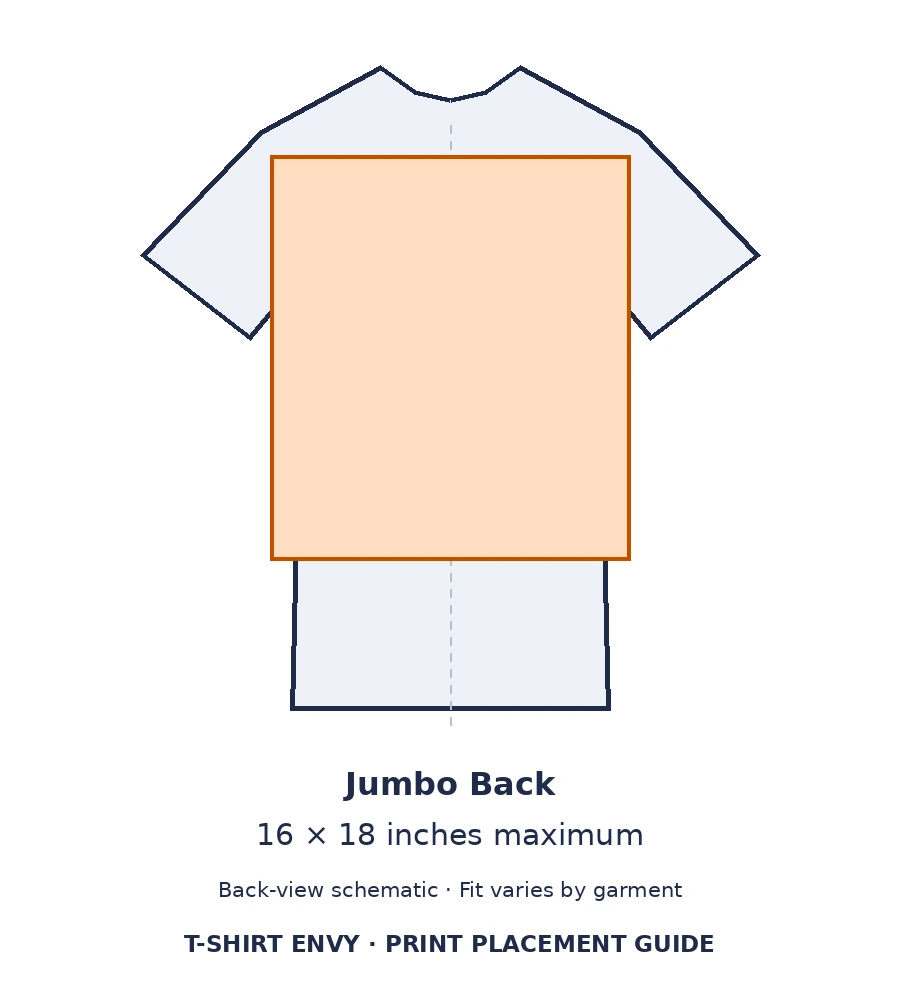

Jumbo Back — configured maximum 16 × 18 inches.
Up to 16 × 18 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
+$12.00 per item. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

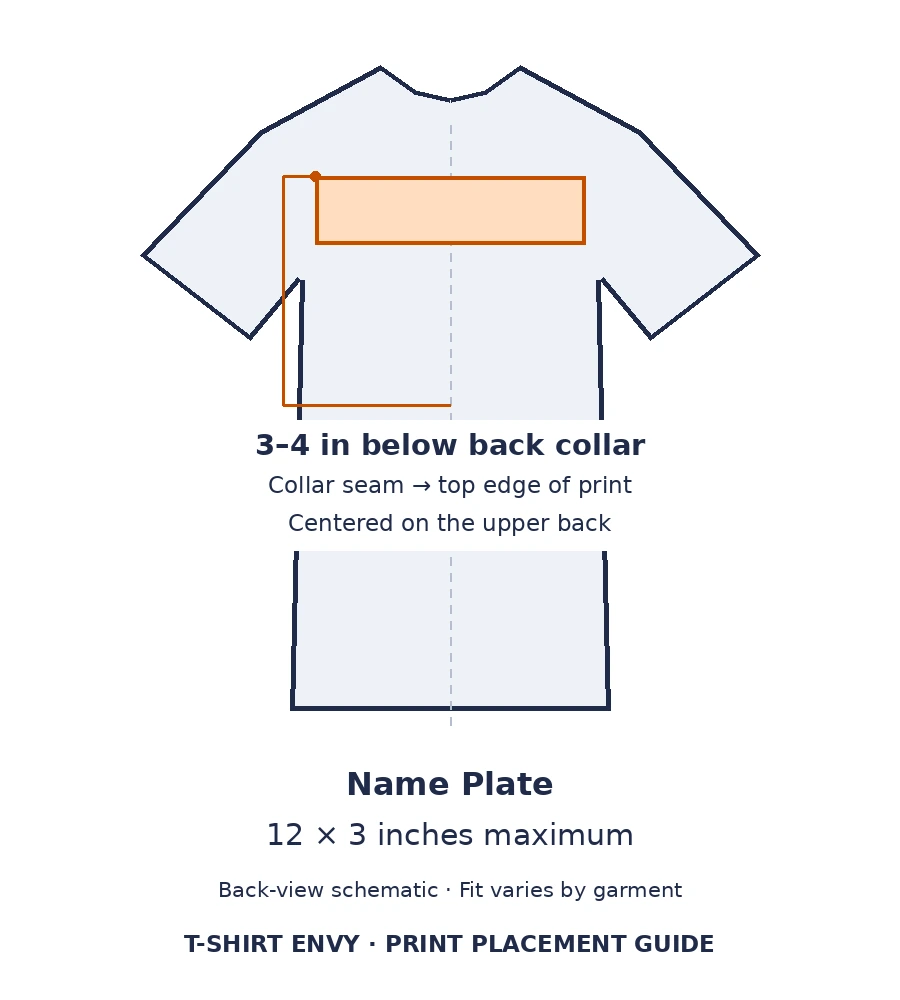

Name Plate — configured maximum 12 × 3 inches. Center on the upper back with the top edge of the print 3–4 inches below the bottom of the back collar seam.
Up to 12 × 3 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
On standard apparel, select a dominant back area first. Hood placement may obscure an upper-back design.
+$5.00 with Standard; included with Oversized/Jumbo. The Studio calculates applicable placement charges.
Preview this placement in the Studio →

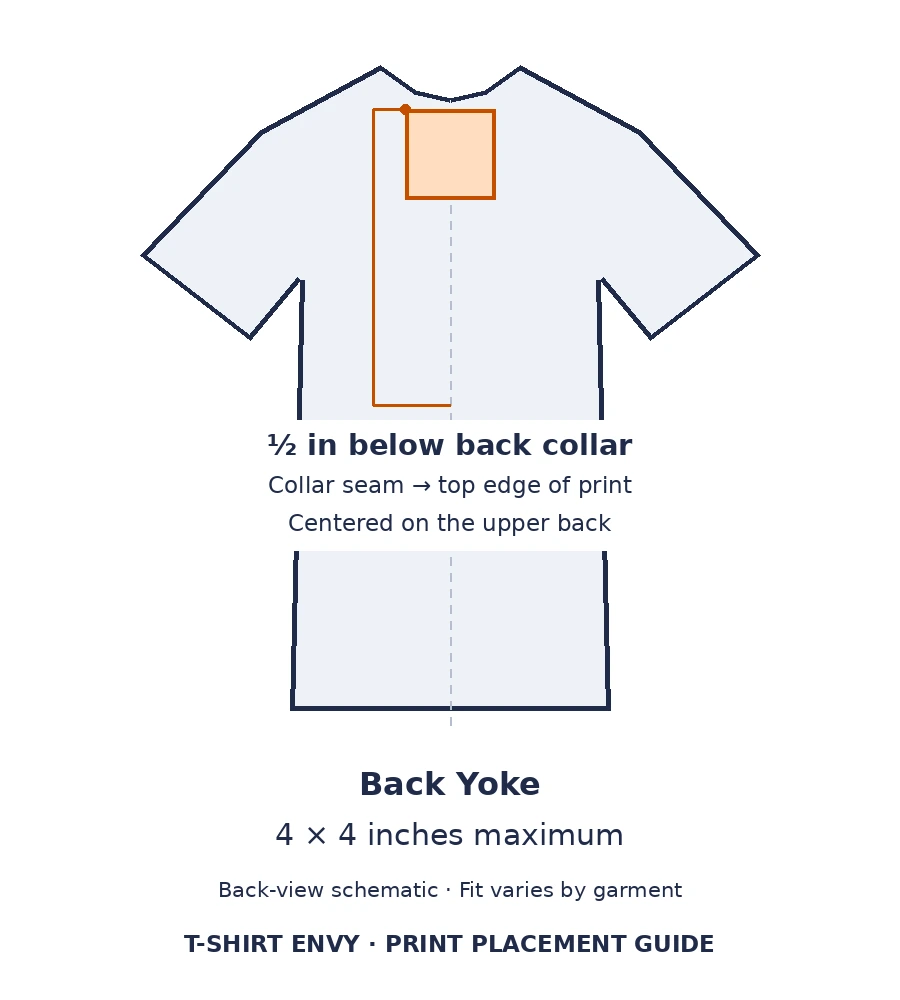

Back Yoke — configured maximum 4 × 4 inches. Center on the upper back with the top edge of the print 0.5 inch below the bottom of the back collar seam.
Up to 4 × 4 in
T-shirts and compatible apparel. Tank tops, sweatshirts and hoodies need a garment-specific fit check.
DTG on compatible apparel; DTF and Screen Printing where the selected garment, placement and order support the method.
On standard apparel, select a dominant back area first. Hood placement may obscure an upper-back design.
+$5.00 with Standard; included with Oversized/Jumbo. The Studio calculates applicable placement charges.
Preview this placement in the Studio →Standard Center Front and Full Front refer to the same standard front area here: up to 10 × 12 inches. For a larger design, choose Oversized (12 × 14) or Jumbo (16 × 18). Standard Full Back uses 10 × 12, with the same larger options. Choose one dominant area per side; a dominant front print cannot be combined with a left- or right-chest area.
Small garments, pockets, seams and hoodie pouches may reduce usable space. Check each ordered garment size. A configured maximum is not a guarantee of printable space on every item.
Chest and back-yoke artwork starts at the Studio’s configured default size within the approved maximum shown above. Keep your artwork's proportions when resizing.
